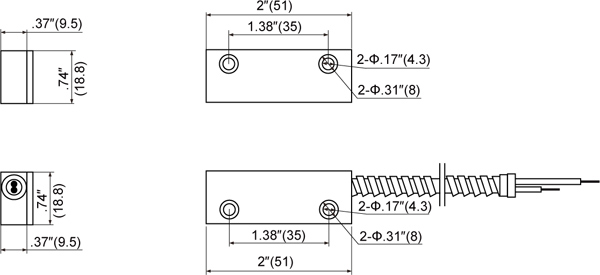

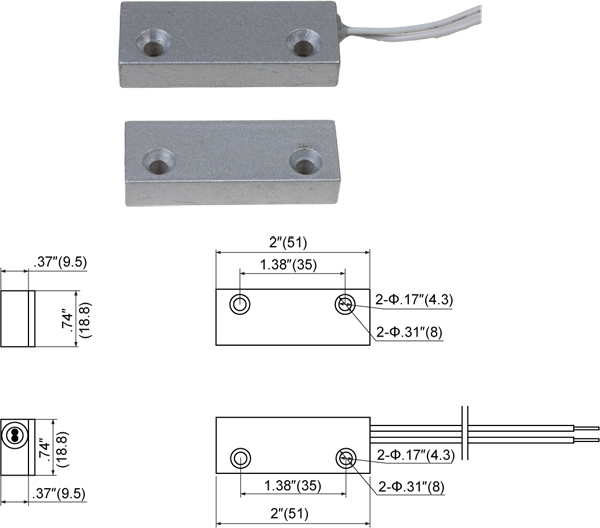

Magnetický kontakt masivní, kovový 2-drátové vývody v pancéřové chráničce, NC kontakt se zatižitelností 100Vss / 0,5A, rozměry 51 x 19 x 10mm, spínací vzdálenost max 32 mm. Vhodný i na kovové (feromagnetické) materiály.
Part Number | Gap Inch (mm) |
Loop Open/Closed |
Reed Form |
Max. Contact Rating (W) |
Max. Initial Contact Resistance (mΩ) |
Max. Switching Voltage (V) |
Max. Switching Current (A) |
---|---|---|---|---|---|---|---|
MET-200 | 1.25″(32) | CLOSED | Normally Open |
10 | 100 | AC110/DC100 | 0.5 |
MET-200 AR | 1.25″(32) | CLOSED | Normally Open |
10 | 100 | AC110/DC100 | 0.5 |
MET-201B | 1.18″(30) | OPEN | Normally Closed |
3 | 100 | AC30/DC30 | 0.2 |
MET-201B AR | 1.18″(30) | OPEN | Normally Closed |
3 | 100 | AC30/DC30 | 0.2 |
MET-202C | 1.18″(30) | SPDT | SPDT | 3 | 100 | AC30/DC30 | 0.2 |
MET-202C AR | 1.18″(30) | SPDT | SPDT | 3 | 100 | AC30/DC30 | 0.2 |
OPERATING TEMPERATURE:-40°C to +60°C
Výrobce | TANE Alarm Products |
