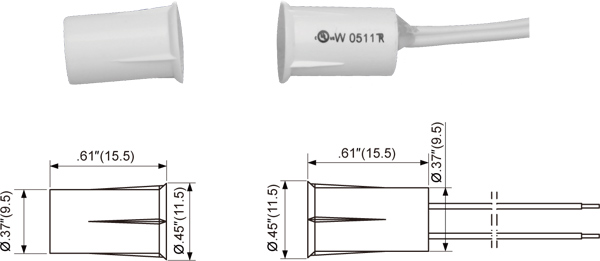

Magnetický kontakt závrtný, plastový, 2-drátový přívod dlouhý 30cm, rozměry 9,5 x 15,5 mm, spínací vzdálenost 12,5mm. Barva bílá.
Part Number | Gap Inch (mm) |
Loop Open/Closed |
Reed Form |
Max. Contact Rating (W) |
Max. Initial Contact Resistance (mΩ) |
Max. Switching Voltage (V) |
Max. Switching Current (A) |
---|---|---|---|---|---|---|---|
MINI-10 | .5″(12.5) | CLOSED | Normally Open |
10 | 100 | AC24/DC24 | 0.1 |
MINI-10 WG | 1″(25) | CLOSED | Normally Open |
10 | 100 | AC24/DC24 | 0.1 |
MINI-10 W/STB-10 | .5″(12.5) | CLOSED | Normally Open |
10 | 100 | AC24/DC24 | 0.1 |
MINI-10 DM | .5″(12.5) | CLOSED | Normally Open |
10 | 100 | AC24/DC24 | 0.1 |
OPERATING TEMPERATURE:-40°C to +60°C
Výrobce | TANE Alarm Products |
